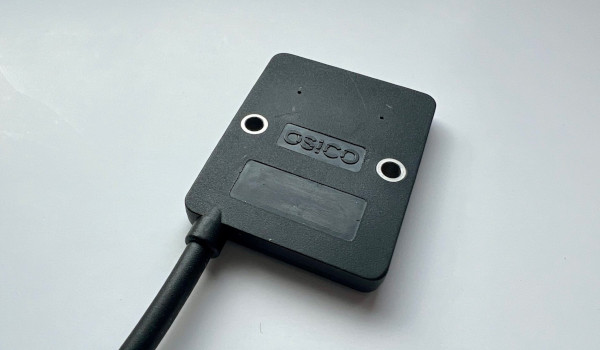

Inductive Position Sensor
25mm Stroke
Non-Contact
Elevate your sensing capabilities with our extra slim position sensor, perfect for pedal position tracking and high-resolution limit switching. Built on non-contact sensing technology, it ensures maximum reliability in compact spaces. Choose between analog (0-10V or 4-20mA) or digital (addressable RS485) communication for seamless integration into common control systems.
Technical Article | Specification |
Interface | |
Analogue Voltage | 0-10V – Configurable (e.g 0.25-4.75V) |
Analogue Current | 4-20mA (3 wire configuration) |
Serial | RS485 (addressable) |
Sample rate (analogue) | 1kHz |
Error Condition (Analogue) | 0.1V or 2mA |
Supply requirements | |
Supply Voltage | 5-36V (output signal clipping may occur under 11V) |
Supply Current (Serial & V) | <20mA |
Supply Current (Current) | <40mA at max analogue output |
Environmental | |
Electronics Temperature | -40 to +85 ̊C (-40 to +247 ̊F) |
Ingress Protection | IP68 / IP69K |
Performance | |
Stroke | +/- 12.5mm from centre (25mm Max range) |
Accuracy (Linearity) | +/- 0.1mm at 20 ̊C |
Resolution | 10 Bit (1024 steps) Full Scale with standard target |
Notes | Config file can be installed for custom linear function Stroke can be configured to less than 25mm (full stroke) |

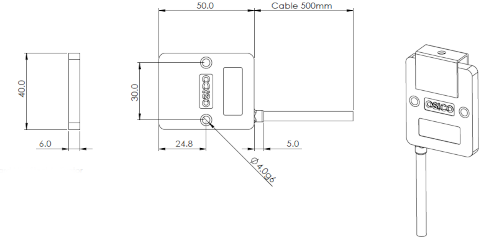

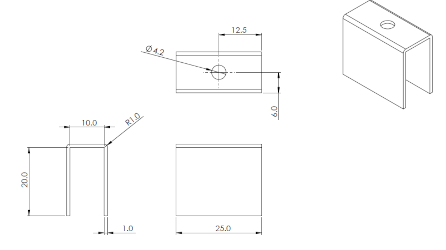

Sensor with standard metal target / activator.
RS485-USB Configuration Cable
