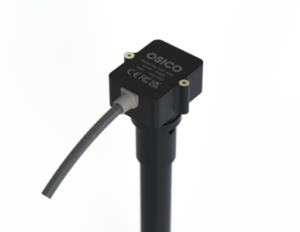

Capacitive Sensor
level & volume
lightweight design
Discover our advanced Capacitive Liquid Level Sensor, boasting market-leading 12-bit resolution. Designed for applications that value minimised weight, it offers standard and customizable mounting options. Software selectable output options 0-10V, 4-20mA, or Serial for seamless integration into common control systems.
Technical Article | Specification |
Interface | |
Analogue Voltage | 0-10V – Configured to 0.25-10V or 0.25-4.75V |
Analogue Current | 4-20mA (3 wire configuration) |
Serial | Serial Plain ASCII over RS232 |
Switch | Open collector High/Low switch |
Sample rate (Analogue) | 100Hz |
Sample rate (Serial) | 1Hz (Configurable) |
Level to Volume Conversion | Config file can be installed to convert to volume |
Error Condition (Analogue) | 0.1V or 2mA |
Supply requirements | |
Supply Voltage | 5-32V (output signal clipping may occur under 11V) |
Supply Current (Serial & V) | <20mA |
Supply Current (Current) | <40mA at max analogue output |
Environmental | |
Electronics Temperature | -40 to +125 ̊C (-40 to +247 ̊F) |
Ingress Protection | IP68 |
Pressure | 10 Bar differential |
Compatible Liquids | Petroleum Fuels, Diesel, Water, Coolant & Oils |
Performance | |
Accuracy | +/- 1% of full-scale deflection at 20 ̊C |
Resolution | 12 Bit (4096 steps) |
Linearity | Config file can be installed for custom linear function |
Temperature Stability | Calibrated over liquid appropriate range |
Custom threaded mounting
TTL-USB Configuration Cable
